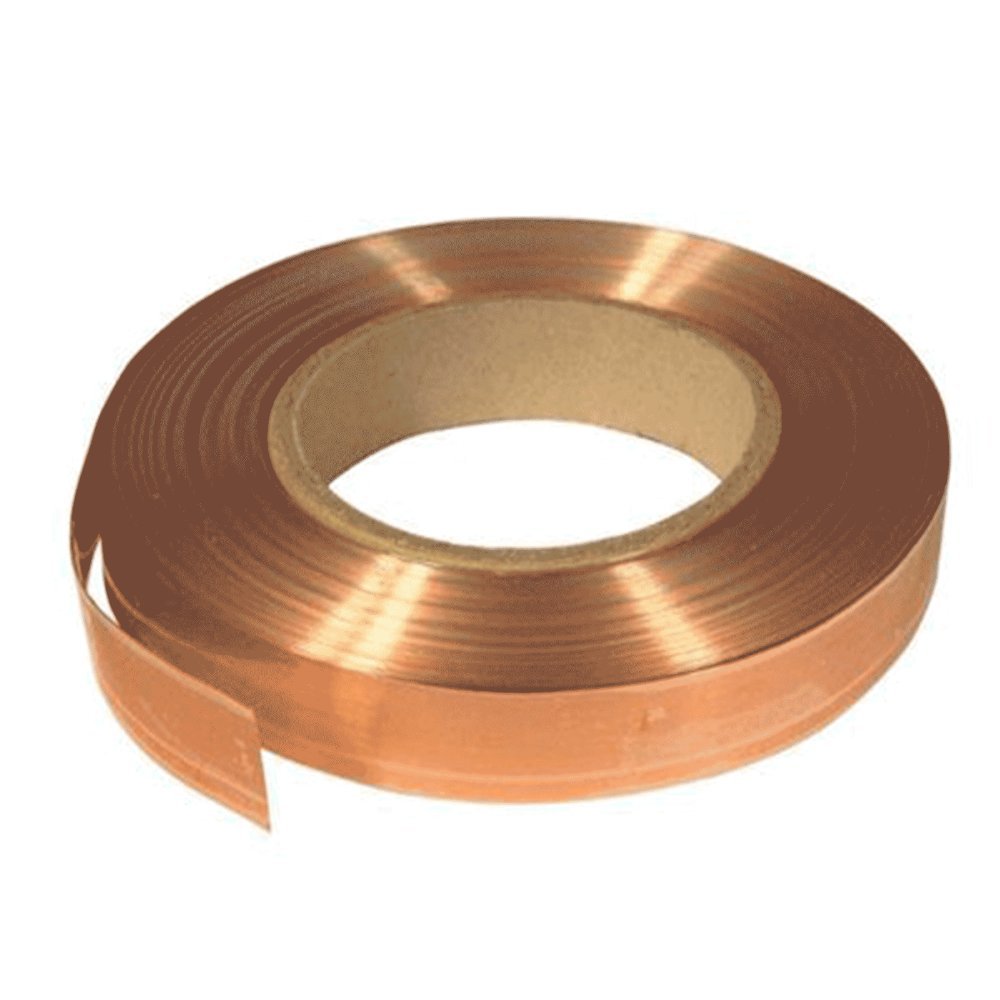

Copper Tapes for Earthing
Copper earth tapes are used as HV electrodes for standard earthing arrangements on ground mounted LV MV HV substations – the earth tape functions as a perimeter electrode installed to the outer edges of the foundation in direct contact with the soil and connected to the switchgear earth bars.
Application: Earthing Electrical
MOQ: 1000Kgs
Description
Product Benefits:
Copper Tape distribute electricity with greater ease and flexibility than some other more permanent forms of installation and distribution.
Grade:
C11000 – (ETP) Electrolytic Tough Pitch
Temper:
Soft (Annealed) | Half Hard | Quarter Hard
| MATERIAL | BRAND | TYPE | OUTSIDE DIAMETER | THICKNESS | LENGTH |
| Copper | *** | Coils in Tape Form | 10mm to 300mm | 1mm (min) to 40mm (max) | Straight Length: 1mtr to 6mtr and Coil Length: Upto 50 mtr |
| BENEFITS |
| More compact and robust than a wiring harness. |
| Distributes power efficiently. |
| Copper Busbars are Very Good Conductor. |
| Easily customised for whatever purpose. |
| Cost Effective in the Long Run. |
| Recyclable |
| SPECIFICATIONS |
| »» IS – Indian Standard |
| »» BS – British Standards |
| »» EN – European Nation Standards |
| »» ASTM – American Standards |
| »» AS – Australian Standards |
| »» JIS – Japanese Standards |
